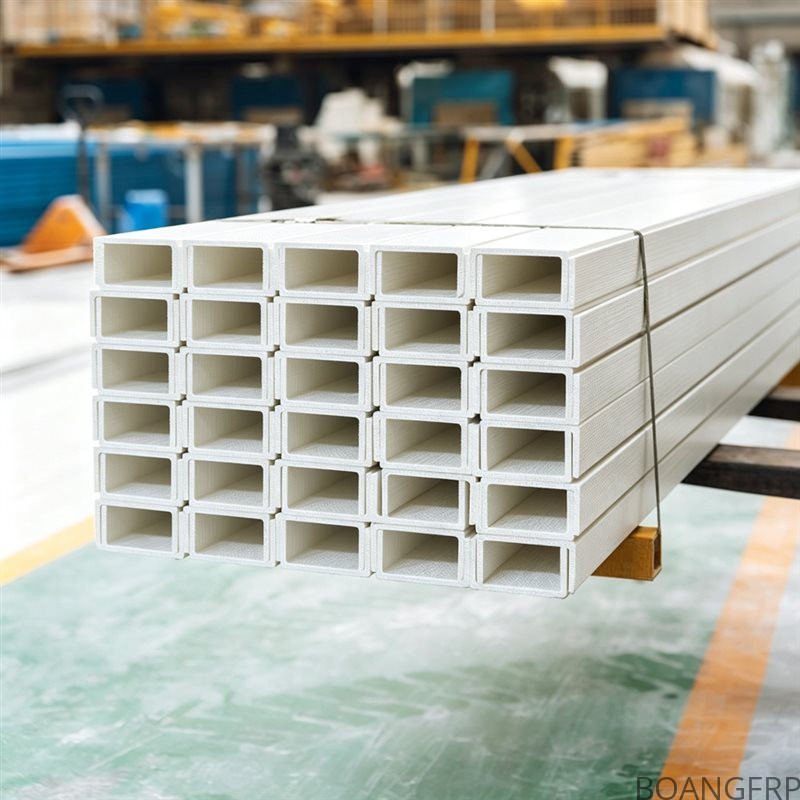

Pultruded FRP Channel: Heavy-Duty Framing Without the Rust
When building structural supports for walkways, cable trays, or chemical processing equipment, engineers often face a frustrating reality. Steel channels offer excellent load-bearing capacity, but they rust rapidly in corrosive environments. Aluminum channels resist some corrosion but are electrically conductive and degrade in strong chemicals.

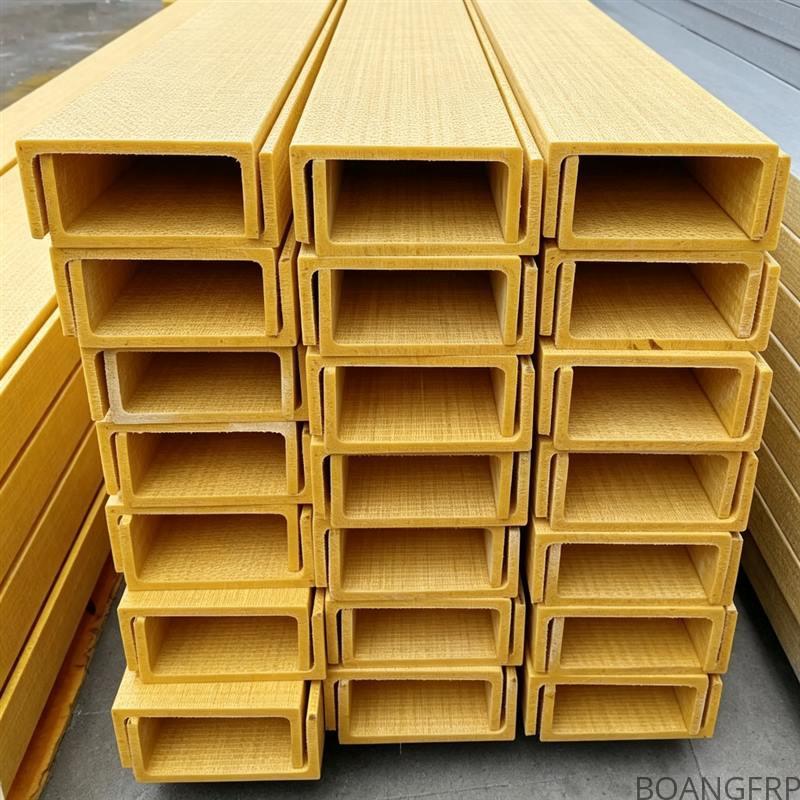

To solve this, structural engineers specify the Pultruded FRP Channel. Whether you know it as a Pultruded GRP Channel (in Europe/UK), an FRP C channel, or an FRP U channel, this profile is engineered to deliver steel-like strength with absolute corrosion resistance.
Why Use FRP Channels in Industrial Design?
The pultrusion process ensures continuous glass fibers are pulled and cured with thermoset resin, creating a profile with exceptionally high longitudinal strength. Here is why it outperforms traditional materials:
-
Zero Rust: It will never corrode, even in wastewater treatment, chemical plants, or offshore platforms. There is no need for galvanizing or painting.
-
High Strength-to-Weight Ratio: An FRP channel is significantly lighter than steel. This reduces the structural load on the main building frame and makes installation much faster.
-
Non-Conductive: It is electrically non-conductive and EMI/RFI transparent, making it safe for electrical substations and telecommunication applications.
Understanding the Channel Shapes

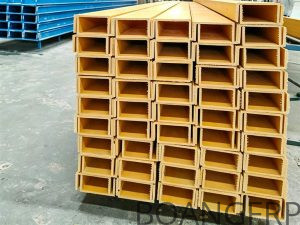

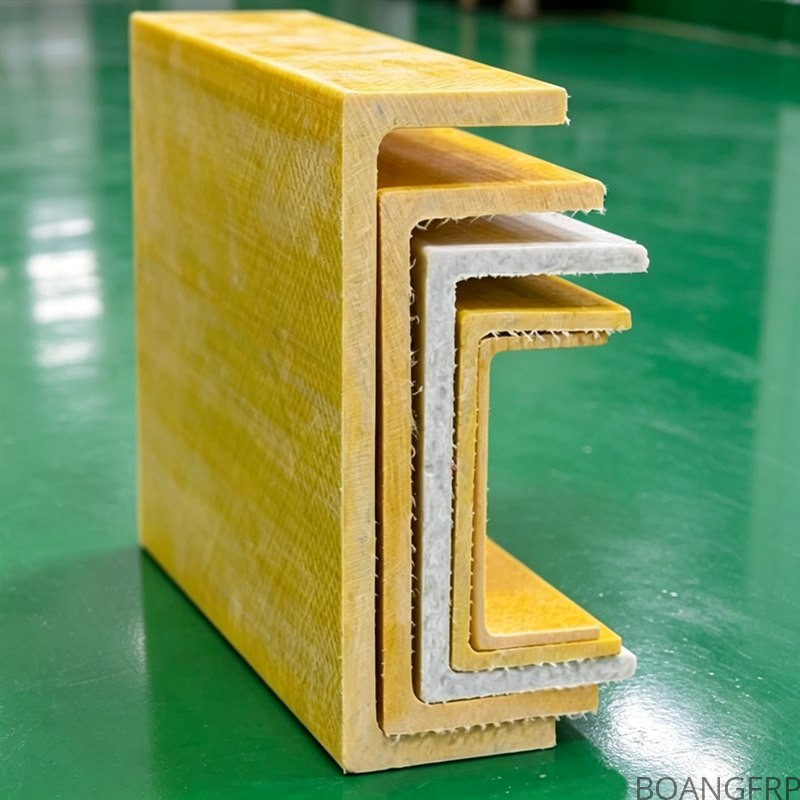

Both FRP C channel and FRP U channel refer to the same basic geometric shape: a flat web with two perpendicular flanges. However, the terminology often depends on the manufacturer or the specific application.
-
FRP C channel: Typically used when the profile acts as a beam or a joist, similar to a standard structural steel channel.
-

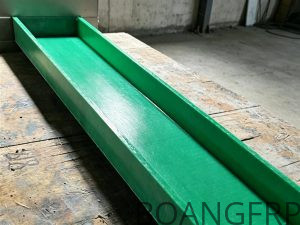

FRP U channel: Often specified for edge framing, tracks, or when the profile is used to cradle or support another material, such as a solid plate or grating panel.
Customizing the Profile for Your Project
A major advantage of working with composites is the ability to tailor the profile. For a Pultruded GRP Channel, you can specify:
-
Thickness: Standard wall thicknesses range from 3mm to 12mm. Heavier thicknesses provide higher stiffness for long spans.
-
Resin Type: For severe chemical exposure, specify premium vinyl ester resin. For general structural outdoor use, isophthalic polyester is standard.
-
Surface Finish: Smooth surfaces are standard. However, if the channel is used as a handrail or requires grip, a gritted surface can be applied.
Critical Installation Details
Working with composite channels requires different techniques than steel.
-
The Cut Edge Rule: This is the most common point of failure. When you cut or drill a pultruded channel, you expose raw glass fibers. If these fibers are left unprotected, moisture and chemicals will wick into the material, causing delamination. Every cut edge must be sealed with a compatible resin.
-
Fastening and Bolting: Use stainless steel bolts and washers. FRP can crush under extreme point loads, so always use large washers to distribute the clamping force. Avoid over-tightening the bolts.
-
Deflection Control: FRP has a lower modulus of elasticity than steel. When used as a load-bearing beam, you must check the manufacturer’s deflection tables. A channel that safely holds the weight might still sag too much; ensure the span is correctly calculated to prevent structural failure.
Why Buyers Partner with BOANG
At BOANG, we manufacture high-quality Pultruded FRP Channel and custom pultruded profiles for industrial projects worldwide. We understand that structural framing is critical to your facility’s safety.
We use premium vinyl ester and isophthalic resins, combined with high glass content, to produce channels that meet strict load-bearing requirements. We offer standard sizes and custom tooling to match your exact dimensional needs. Every shipment can include mechanical test reports, load data, and material certificates to help your engineering team approve the installation with confidence.
Stop replacing rusted steel. Send us your framing layout, load requirements, and environmental conditions today. Our technical team will help you select the right FRP U channel or FRP C channel and provide a factory-direct quote within 24 hours.
Contact BOANG today to secure durable, corrosion-free structural support for your next project.
